1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Tue 8 Dec - 4:11

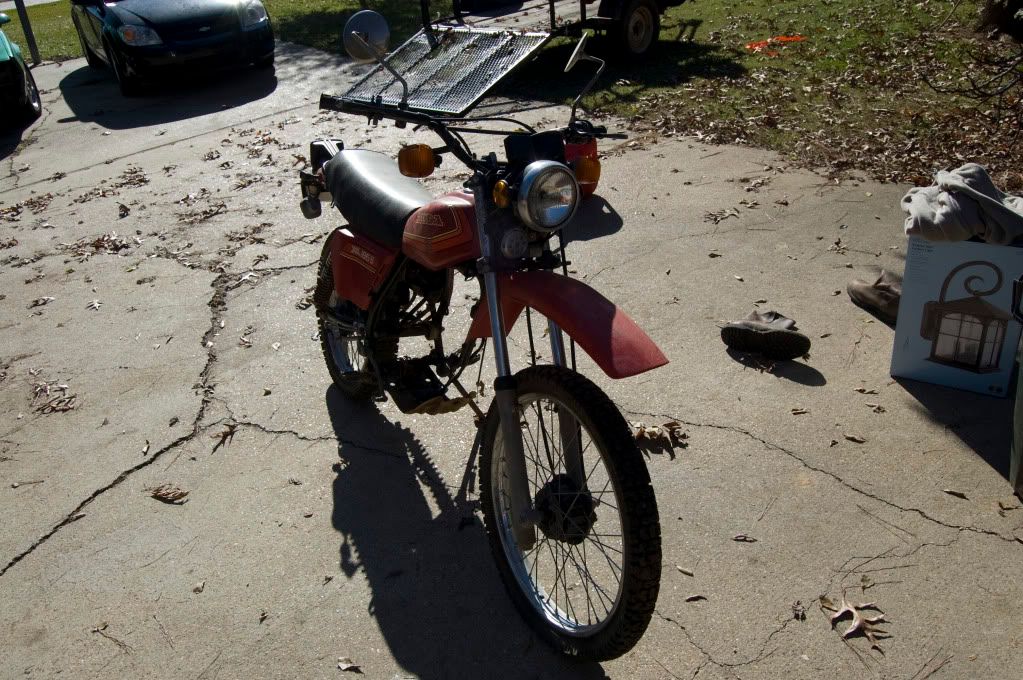

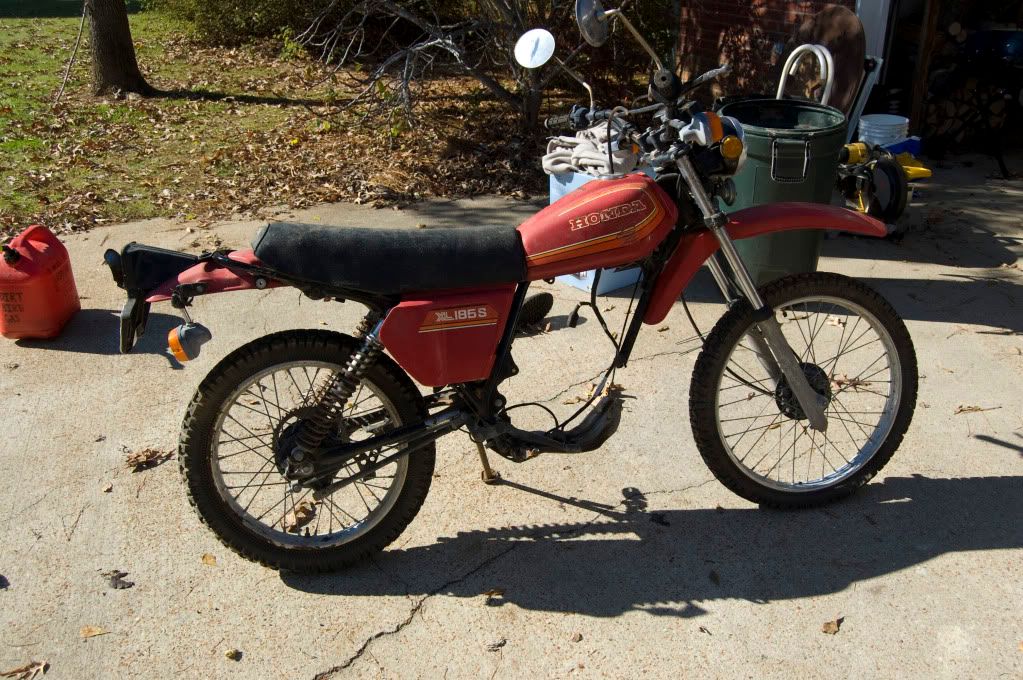

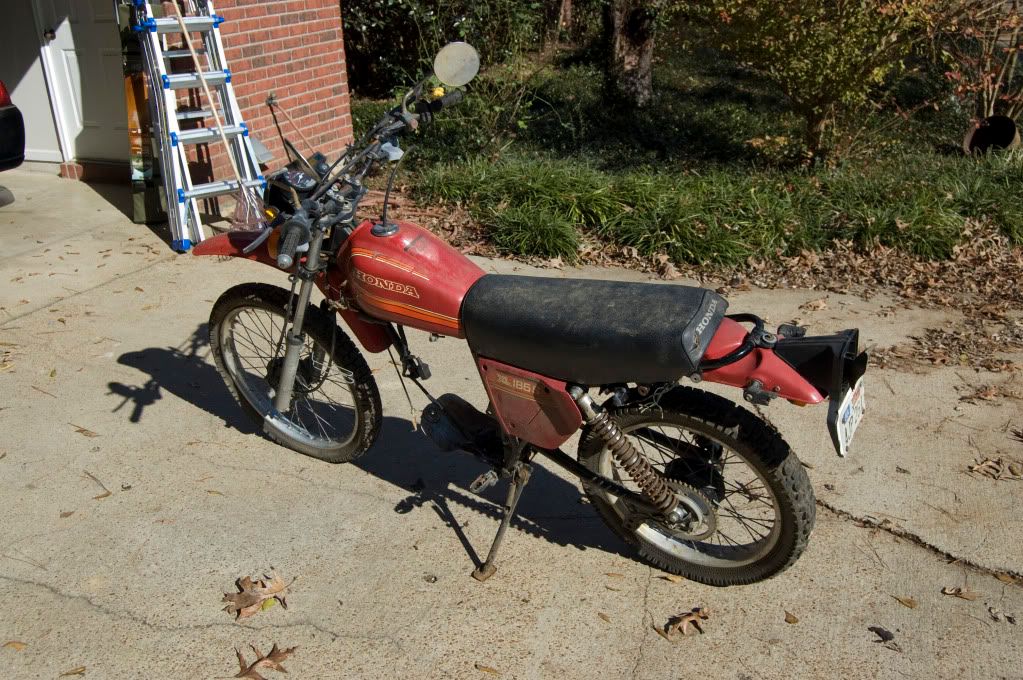

Ok here is the PLAN. I have a 1980 honda xl185s. Its an old on/off road bike. Although I love cafe racers and would love to build another one. From looking at the cb125 builds the frame is pretty much identical. Correct me if I'm wrong.

So my question is dare to be different and build a cafe out of a dirt bike or drop the idea?



avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  TinTin on Tue 8 Dec - 10:39

I think you build a caf out of almost everything! Just shorten the front fork tubes and use shorter springs in the rear and you are on the right way. The Xl seems a nice and light bike to mess around with so you could give it a try. cheers maybe you can make it into a scrambler caf.....
avatar
TinTin
Moderator

Posts : 634
Join date : 2008-06-02

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  650zed on Tue 8 Dec - 11:42

I'm sure it's possible to build something very interesting out of this.


Last edited by 650zed on Tue 8 Dec - 12:38; edited 1 time in total

_________________
Horse Power to the people!


z650 Kawa Power
avatar
650zed
Administrator

Posts : 2290
Join date : 2008-04-27
Age : 87
Location : Utrecht Zed City - The Netherlands

View user profile http://www.z650.12r.org

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Wout on Tue 8 Dec - 12:34

hello,

I've installed the XL 185 engine in a frame of an old CB 125, look at my post:

http://classicbikes.actieforum.com/show-us-your-project-f1/some-pics-of-my-honda-cb-185-caferacer-t217.htm

The advantage is that the engine of the XL has much more torque compared to a 125. Shorten the front fork, or put a fork of a cb, put shorter springs and/or a swingarm of a cb. You can also make a streettracker.

if you plan to use another frame, the dimensions of the engine are rather the same as the engine of a 125, you just have to make new brackets to hold the engine at the cil.head.

Good luck!
avatar
Wout
Veteran Racer

Posts : 145
Join date : 2008-06-30
Age : 40
Location : BELGIUM

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Mingh on Sun 13 Dec - 0:50

why not build a retro scrambler or city trasher?

Mingh
Speed Racer

Posts : 79
Join date : 2008-05-22

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Sun 13 Dec - 1:20

Wout wrote:

The advantage is that the engine of the XL has much more torque compared to a 125. Shorten the front fork, or put a fork of a cb, put shorter springs and/or a swingarm of a cb. You can also make a streettracker.


What is the best way to shorten the forks? I think I am going to build a cafe out of it but who knows your mind can change in the middle of a build.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  andreas on Sun 13 Dec - 1:52

Hi JFG75, it`s easy to get some road fork tubes, than to cut them down, cause you need first a big lethe and know how to work on it. Next step is to cut down the inner springs correct, and cut a new finethread inside - thats not easy!. You need a lower wheel 19" for example, and at first you can push the forktubes through the brigde and find out what`s a good position for a street bike before you ruin the fork - but look at mine - scrambler works also and your trouble is far away!!

Andreas


Last edited by andreas on Sun 13 Dec - 20:27; edited 1 time in total
avatar
andreas
Moderator

Posts : 597
Join date : 2008-11-29
Age : 56
Location : North Germany

View user profile http://www.retrospeedstyle61.de

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Wout on Sun 13 Dec - 19:44

I agree with andreas,

for less then 100 euro you'll find a fork on ebay. If you still want to do it yourself:

http://www.xs650chopper.com/2009/06/mulligan-machine-lower-your-xs650-forks-low-buck-garage-tech/

have fun!
avatar
Wout
Veteran Racer

Posts : 145
Join date : 2008-06-30
Age : 40
Location : BELGIUM

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Fri 25 Dec - 2:23

I am def going to attempt a build on this bike. What carb did ypu choose for the xl185 motor? That is one of my missing pieces.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Wout on Sun 27 Dec - 1:19

Merry xmass folks!

I used a Keihin carb from a cb 125 1976, withs the jet and needle of an xl 185 1982.

If you want the exact specs of the Keihin, i can search in the manual.

I think I still have a Keihin of an XL 185 1982 with inlet manifold
avatar
Wout
Veteran Racer

Posts : 145
Join date : 2008-06-30
Age : 40
Location : BELGIUM

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Sun 27 Dec - 9:39

I have the inlet manifold. Is it a working carb or does it need rebuilding?
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Wout on Mon 28 Dec - 11:33

I needs new jets and needle, for the rest is everything ok. I just saw that you live in the states, it's more economical to find a carb on ebay usa, no?
avatar
Wout
Veteran Racer

Posts : 145
Join date : 2008-06-30
Age : 40
Location : BELGIUM

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Tue 29 Dec - 1:37

yes it would be a better way to go. I am prob going to start this project during the summer i have not broken the motor down yet to find out what kind of shape its in.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Fri 8 Jan - 23:02

andreas wrote:I give some more. Andreas

I have decided to build a similar style bike. hopefully I can build the bike as low as I would like.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  CJ on Fri 8 Jan - 23:06

hopefully I can build the bike as low as I would like.

Well that must be not all that difficult concerning the metal (polished) bars instead of rearsprings Shocked

CJ
Veteran Racer

Posts : 146
Join date : 2009-02-18

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Fri 8 Jan - 23:26

Thats what I am hoping. I like the fat tires. I am going to cut the frame away from the fender so tire clearance will be my main issue i think.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  sven on Sat 9 Jan - 12:28

jfg75 wrote:
What is the best way to shorten the forks?

The best method is to decrease its travel by
preventing it from rebounding to full lenght.
Remove the damper rod (#12)and you'll see the
"rebound stop spring"(no #) under its piston.
Install a longer spring or an additional tube
of suitable diameter and lenght. After re-
assembly you just have to shorten the pre-
loader (#16) on top of the main spring and
you're done.




Best regards
Sven

edit:
silverCR750 shows in his thread how he did
it. It's exactly what I meant, the forks are
being lowered by the measure of the alloy
tube between spring and piston:



Last edited by sven on Sat 16 Jan - 19:32; edited 2 times in total
avatar
sven
GP Legend

Posts : 94
Join date : 2010-01-05
Location : Grafing close to Munich (Germany)

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Sat 9 Jan - 21:10

Thanks for all the help. I hope to get it really low. I think clearance with the tire size on the rear will be a problem but we will see. Cant wait to start. Thanks again.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Wed 20 Jan - 21:00

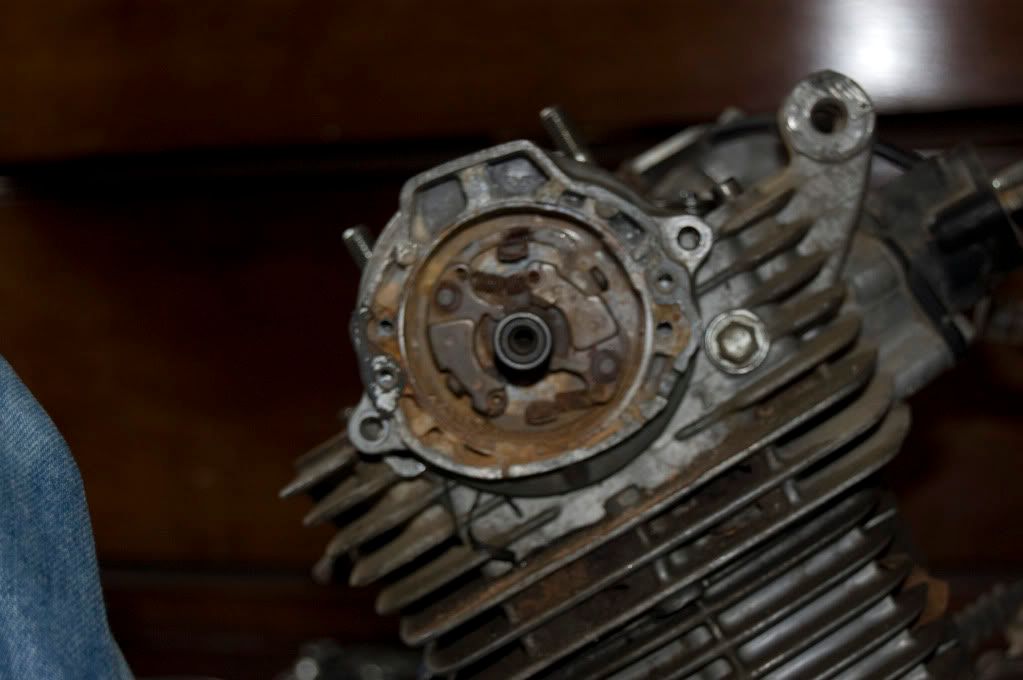

Does anyone how to remove these pieces so I can pull the pulse generator off the camshaft?

avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  Z666 on Wed 20 Jan - 22:38

You need to remove the "E-clips" from the little axl where the wheights are mounted on.

Another way to get the front of your bike down to put the fork-tubes thru the holders a few cm's so the lenght of the fork stays the same but the bike drops a few cm's

I found two black rubbers to put on top of the fork so it looks a little cleaner.


avatar
Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Wed 20 Jan - 23:11

Great idea about the forks. Thanks... I have the weights off now Im working as I post. the bracket behind the weights wont slid of the camshaft. Any Ideas?
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Thu 21 Jan - 1:38

From the parts breakdown image I have, the weights and the bracket are all one piece this is why I asked the other questions. So I took the weights off and now the bracket is not coming still.... any help would be great!
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  jfg75 on Fri 26 Feb - 4:53

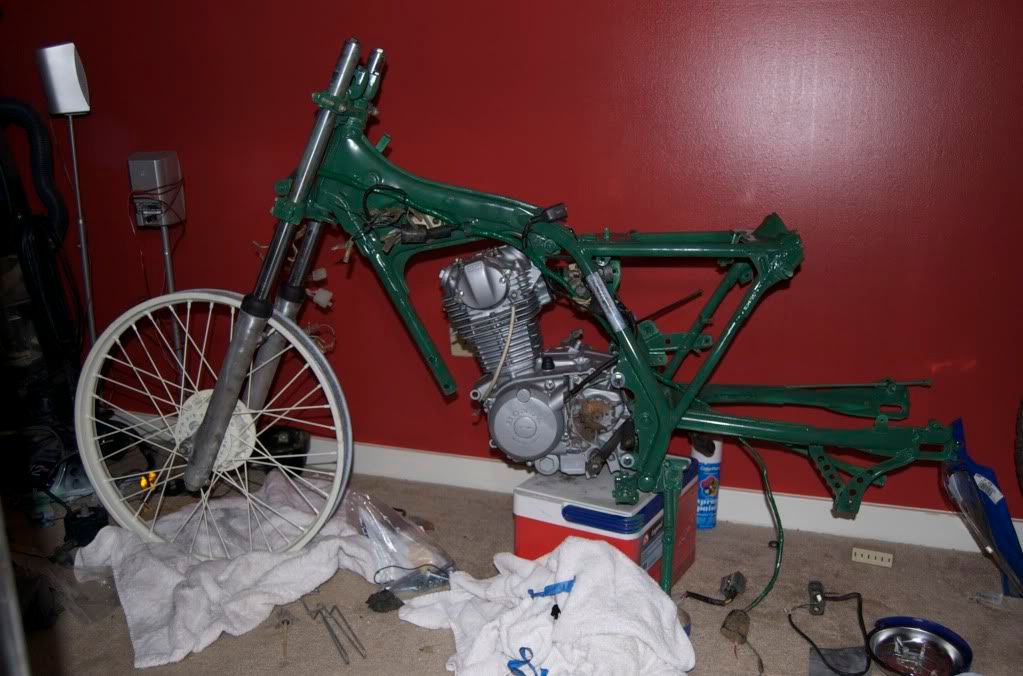

New update. Rebuilt and painted the motor. Working on cosmetics and getting missing parts now.
avatar
jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 29
Location : Mississippi, United States

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  TinTin on Fri 26 Feb - 10:28

looking good! can't wait to see this one somewhat half finished so we get an impression of the renewd bike
avatar
TinTin
Moderator

Posts : 634
Join date : 2008-06-02

View user profile

Back to top Go down

Re: 1980 Honda xl185s.... decisions.... decisions

Post  alazzurra 550 alu style on Fri 26 Feb - 19:35

jfg75 wrote:

New update. Rebuilt and painted the motor. Working on cosmetics and getting missing parts now.
looking very good, bud that frontfork is really not done!
look for a fork of a cb or tomething, for a couple of dollars you can get one, i really think that should look so much better.
bud anyway, really good looking bike.
avatar
alazzurra 550 alu style
Veteran Racer

Posts : 181
Join date : 2008-07-28

View user profile

Back to top Go down
