XS 650 Engine Rebuild

Post  Z666 on Sat 2 Jan - 15:02

So,...

The first part of a new project..

If anyone has tips or tricks or interessting XS-related sites let me now!
I'm not familiar with XS engines at al so every usefull tip is
I'm planning to rebuild the engine completely just to be sure cyclops


Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  mg on Sat 2 Jan - 16:34

the best place for xs parts is http://www.xs650.biz/

mg
Veteran Racer

Posts : 122
Join date : 2008-06-07
Location : holland

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  jimmy's garage on Sat 2 Jan - 20:35

what about http://www.xs650.de/forum/ or the site from nederland http://www.xs650.nl/.
there is a guy hein weijers,he has good ideas for example oilfilter and so on.
you must definatly change to an other oilfiltersystem!

regards

dennis

jimmy's garage
Racer

Posts : 43
Join date : 2010-01-02
Location : northwestgermany

View user profile http://www.mofarennen-emsland.de/

Back to top Go down

Re: XS 650 Engine Rebuild

Post  andreas on Sun 3 Jan - 0:33

Hi Dennis, Yams XS650? so much is possible. Send you a bit inspiration.
Andreas






So we will see what you create !

andreas
Moderator

Posts : 597
Join date : 2008-11-29
Age : 55
Location : North Germany

View user profile http://www.retrospeedstyle61.de

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Gss on Sun 3 Jan - 12:48

lots of succes with your build!

ps: dont forget to get the basket of the " Versmarkt " back! Laughing

Gss
Veteran Racer

Posts : 222
Join date : 2008-09-15
Age : 29
Location : Belge

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Z666 on Sun 3 Jan - 12:52

I stole it AND smuggled it over the border so I think i'm safe Suspect

Thanks for the lins and ideas all!

Seems there are a lot of new parts for this engine for sale! and for reasonable prices..

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Z666 on Mon 4 Jan - 23:04

jimmy's garage wrote:what about http://www.xs650.de/forum/ or the site from nederland http://www.xs650.nl/.
there is a guy hein weijers,he has good ideas for example oilfilter and so on.
you must definatly change to an other oilfiltersystem!

regards

dennis

I noticed a lot of XS engines are beeing rebuild to an external oilfilter-system.. why??
Is there something wrong or with the original system?

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  jimmy's garage on Mon 4 Jan - 23:31

hy,my english is not so good to explain the technical things.
the original filter is just paper and that can break really easy.
another pro is that you have more cooling in an external system.

this in an idea of hein weijners from the xs club in holland
http://i236.photobucket.com/albums/ff288/britbike/oliefilter1c.jpg

most people in germany ride with this system
http://www.cokaste.de/4655/4682.html

with this you can use auto-filters from renault(cheap and easy to change).

the xs650 is a really cool bike,but has a few diseases as
-the oilfiltersystem
-the ignition that you have to displaced witch an electronic ignition
-timingchain clamp(i don't know if clamp is the right word)
-electric generator

so that was the reason i sold my xs.but it is definatly a cool bike.

jimmy's garage
Racer

Posts : 43
Join date : 2010-01-02
Location : northwestgermany

View user profile http://www.mofarennen-emsland.de/

Back to top Go down

Re: XS 650 Engine Rebuild

Post  marc on Wed 20 Jan - 0:49

Nice project! I'm curious to see how your going to rebuild the engine! Cool

marc
Moderator

Posts : 625
Join date : 2008-07-31
Age : 27
Location : zuid-limburg

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  XS710 on Wed 20 Jan - 9:32

I see your home is in Baarle so Dutch will be no problem. Purchace the workshop manual from the Dutch XS650 club!

It's a very usefull book, written in Dutch, with a lot of extra information and very worth the price.
Jerry v/d Heiden from Heiden tuning (XS650 specialist) has helped writing the manual.

I have used it rebuilding my XS650 engine.
http://www.xs650.nl/shop/slides/werkplaatshandboek.htm
(It's placed under the 'giftshop' at the homepage.)

XS710
Racer

Posts : 43
Join date : 2008-07-11

View user profile

Back to top Go down

Slopen die handel!

Post  Z666 on Wed 20 Jan - 19:02

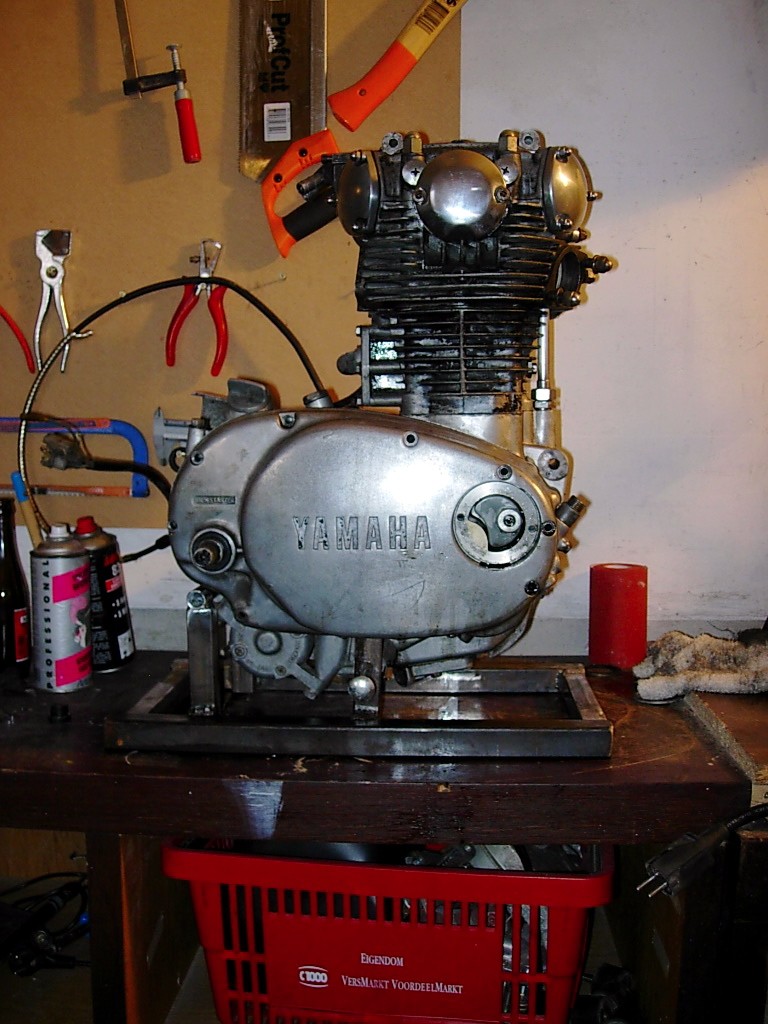

first pictures of the disassembly

The engine is a mess! But in XS650 terms its all "normal" they say.Rolling Eyes

*Startergear completely worn ( no teeth left )....
*Sumpfilter broken ---> iron from the gear thru the oilpump! Yeehaw! but the second filter kept it from going tot the expensive parts Shocked
*Pistons a little worn
*camchainguide worn

Viva z650's! never seen an engine as bad as this one! The crazy thing is that thes errors are all in the design of the engine!!! Shocked
So...Let the spending begin!!!

Startersystem:









At last! now i can start with the interesting things!!

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  650zed on Thu 21 Jan - 10:52

Z666 wrote:The engine is a mess! But in XS650 terms its all "normal" they say.Rolling Eyes
Viva z650's! never seen an engine as bad as this one! The crazy thing is that thes errors are all in the design of the engine!!! Shocked
Now you speak my language...!
In Zed We Trust...!

Anyway, good luck with the project!

_________________
Horse Power to the people!


z650 Kawa Power

650zed
Administrator

Posts : 2290
Join date : 2008-04-27
Age : 87
Location : Utrecht Zed City - The Netherlands

View user profile http://www.z650.12r.org

Back to top Go down

Re: XS 650 Engine Rebuild

Post  XS710 on Thu 21 Jan - 15:07

Who needs a startersprocket? The kickstarter is not for show! Cool

I have removed the complete starter motor with the sprockets and use only the kickstarter. I caped the hole in the engine with a plug (available at Heiden tuning) and placed the external oilfilter at that place.

XS710
Racer

Posts : 43
Join date : 2008-07-11

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Z666 on Thu 21 Jan - 19:10

With my Z650 i did this too and after 4 years i changed i back. I must say its a lot easier if your bike wont start that good or if it is on the workbench.( haha i already know what your thinking now..."wont start that good????" )


So.... you have a startersprocket in spare for me!! or is it broken too scratch

What did you do with the sumpfilter? and why did you use the external oilfilter? i've seen this many times on XS engines but i dont understand the real purpose of this filter? its behind the oilpump..so if the sumpfilter has its usual problem again the pump gets broken again? scratch

I'm not sure yet what i'm gonna do, but i think changing the sump filter to a spin-on filter and leaving the little meshfilter for what it is, seems a more plausible correction for the problems these engines face. Or am i thinking wrong?

But putting a filter a the starterengine is a cool idea! hmmm...

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  jimmy's garage on Thu 21 Jan - 20:37

hey,
if you don't want to use an external oilfiltersystem check this site http://www.xs650.de/forum/viewtopic.php?f=8&t=15867
ok it's in german but go throu the pages and have a look at the pics.maybe that can be an inspiration.
my xs is already sold,but if you love your bike i would advise this version. http://www.cokaste.de/4655/4682.html

regards

dennis

sure,the little filter in the right side of the engine has to stay

jimmy's garage
Racer

Posts : 43
Join date : 2010-01-02
Location : northwestgermany

View user profile http://www.mofarennen-emsland.de/

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Z666 on Thu 21 Jan - 21:28

Thanks for the links dennis.
I've been reading these kind of forums for a while now
With the solution in the enginecompartment i already saw problems of the filter getting damaged..
So there are loads of discussions about pressures in the carter and so on, but i think its just the pressuredrop over the filter that makes it collapse..
So if you have a filter in an iron body and both sides of the filter are secured by a strong iron mesh (like the standard spin-on carfilter) the solution is simple.
But i can understand some people have time enough and just like to re-invent the wheel or something like that on a nice sunday afternoon! haha cyclops

For my opinion the second Link is the best way to deal with the problem but i think 80-90 euros is expensive.....

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  mg on Thu 21 Jan - 21:46

when you want good advice call jerry vd heijden
and you be sure that you do the right thing
he built more than 1000 maybe 5000 xs blocks
also for races so he now what he do
he tryed alot of different experiments with the xs
there are several solutions from cheap to exspensive

mg
Veteran Racer

Posts : 122
Join date : 2008-06-07
Location : holland

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Z666 on Thu 21 Jan - 22:43

Maybe i should go overthere and have a talk indeed. whats your experience with this?

Z666
Racer

Posts : 56
Join date : 2009-12-22
Location : Belgium,Beerse

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  Ton Up Boy on Fri 22 Jan - 2:01

If you come this way, Peter, we'll stop at his shop.
I know him very well and I'm sure he can provide you with the best advices

Ton Up Boy
Veteran Racer

Posts : 169
Join date : 2008-06-20
Age : 57
Location : Bussum, Holland

View user profile http://www.roadrocketclub.nl

Back to top Go down

Re: XS 650 Engine Rebuild

Post  mg on Fri 22 Jan - 11:29

whats your experience with this?
i come there a lot in the shop
becouse i rebuilt my xs totally this winter
and there came a lot of friendly people where i can talk with

mg
Veteran Racer

Posts : 122
Join date : 2008-06-07
Location : holland

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  jimmy's garage on Fri 22 Jan - 22:24

you should take the filter from cokaste.de i think.
you pay 80 but just for one time.after that,you
have an easy oil-change just screw the filter
out and another in.that's it!
and you don't have to buy or to change the filter
from the sumpfilterplate and also the system works with
an renault car-filter wich is very cheap.maybe 7.
that's a really advantage.
the filter drafts the oil on on the suction side.
i don't know a better system.
for me the only negative reason could be the
chassis clearence.but before the filter scratches
your mainfolds would get damaged.
so,that will not be a real problem Suspect

regards

dennis

jimmy's garage
Racer

Posts : 43
Join date : 2010-01-02
Location : northwestgermany

View user profile http://www.mofarennen-emsland.de/

Back to top Go down

Re: XS 650 Engine Rebuild

Post  XS710 on Mon 25 Jan - 10:24

@Z666
You have a PM.

XS710
Racer

Posts : 43
Join date : 2008-07-11

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  XS710 on Mon 1 Feb - 13:37

On Marktplaats.nl there is a complete XS650 startermotor set for 50Euro's.

XS710
Racer

Posts : 43
Join date : 2008-07-11

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild

Post  jfg75 on Tue 9 Feb - 4:49

What was you technique cleaning the head?

jfg75
Novice Racer

Posts : 39
Join date : 2009-09-20
Age : 28
Location : Mississippi, United States

View user profile

Back to top Go down

Re: XS 650 Engine Rebuild
